Panel level optimisation, how micro inverters lift output on multi-faceted roofs
Multi-faceted roofs are common in UK homes. One part faces south, another faces west or east, and a chimney or tree throws shade at certain times. In a traditional string setup, the weakest panel can pull down the whole string. Micro inverters solve this by giving each panel its own maximum power point tracking, so shade or orientation on one module does not limit the rest. support.enphase.com

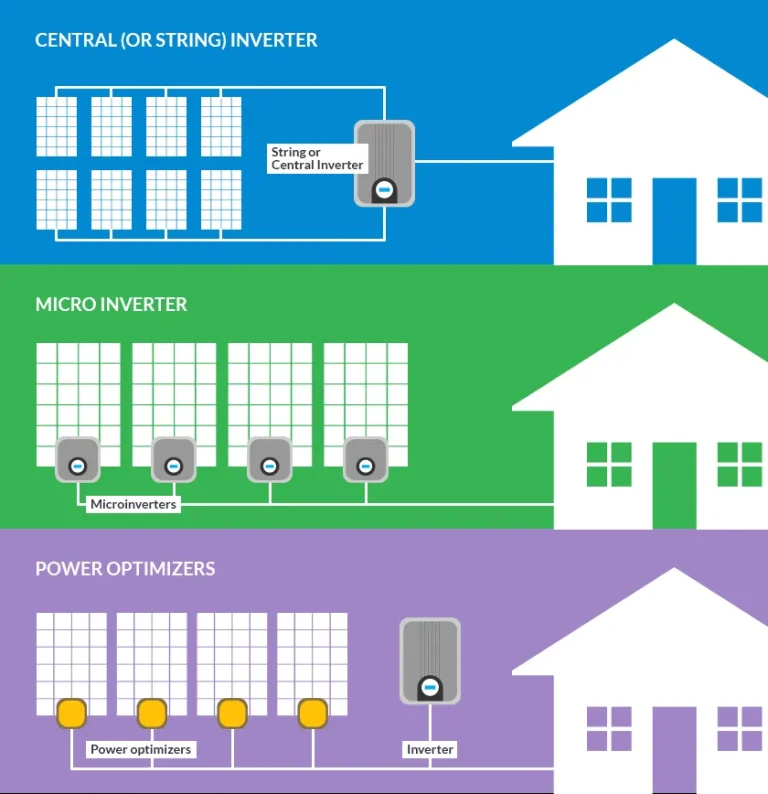

What panel level optimisation means
Panel level optimisation uses electronics on each module to control voltage and current at the panel itself. With micro inverters, DC is converted to AC at the panel, and each module operates independently. This reduces mismatch losses from shade, soiling, manufacturing tolerances, and mixed orientations. Installers also refer to the MCS Shade Evaluation procedure to decide when module level power electronics, including micro inverters, are appropriate. support.enphase.commcscertified.com
When micro inverters make the biggest difference
Mixed orientations, for example a split south and west array.
• Regular partial shade from chimneys, dormers, or nearby trees.
• Complex roof planes where strings would mix different irradiance levels.
• Sites that want granular per panel monitoring and easier fault finding.
Evidence from manufacturers and technical studies shows module level MPPT mitigates mismatch under partial shading, which is the main reason these systems can outperform single MPPT string designs in real homes. knowledge-center.solaredge.com+1MDPI
Helpful background reading on our site
Photovoltaic systems overview: https://solarpanelinstallers.co.uk/photovoltaics/
• Battery storage overview: https://solarpanelinstallers.co.uk/battery-storage/
• Micro inverters explained: https://solarpanelinstallers.co.uk/solar-micro-inverters/
• EV charging at home: https://solarpanelinstallers.co.uk/electric-car-home-charger/
• Is battery storage worth it in 2025: https://solarpanelinstallers.co.uk/is-battery-storage-worth-it-uk-2025/
• Add a battery to existing solar, checks and steps: https://solarpanelinstallers.co.uk/can-i-add-a-battery-to-my-existing-solar-what-to-check-before-you-buy/
watch power-optimisers in action
Worked example, multi-faceted roof with light afternoon shade
This is an illustrative example to show how architecture and shade affect yield. Your exact results depend on roof angle, location, components, and weather.
System
• 12 panels at 420 W each, 5.04 kWp total.
• 8 modules on a south plane, 4 on a west plane.
• A chimney shades two west modules by about 50 percent for two winter hours.
Case A, one string, one MPPT
All 12 panels in one series string on a single MPPT. Current is limited by the shaded modules during the affected period, so the whole string output dips. Bypass diodes help, but mismatch can still drag the string. Aurora Solar
Case B, string inverter with two MPPTs, arrays split
South on MPPT1, west on MPPT2. The shaded west plane no longer drags the south plane during the shade window. Yield improves compared with Case A in the shaded hours. This is a common baseline fix.
Case C, micro inverters on every module
Each module tracks its own maximum power point. During the shade window the two affected modules dip, the other ten keep producing close to their own potential. In field and simulation studies, module level optimisation consistently reduces mismatch losses under partial shading and mixed orientations, which is why it often delivers the highest energy in these conditions. enphase.comknowledge-center.solaredge.comMDPI
What this shows
• Micro inverters decouple panels so mismatch on one does not set the pace for all.
• A dual MPPT string inverter can be very effective when arrays are cleanly split by orientation.
• The more varied the roof and shade, the more panel level control tends to help. knowledge-center.solaredge.com
Practical guidance for UK homes
Start with a proper shade assessment
Use the MCS Shade Evaluation method. It gives a consistent view of annual impact and flags when MLPE makes sense. mcscertified.comGroup by orientation where possible
If you choose a string inverter, split planes onto separate MPPTs. Avoid mixing very different irradiance on one MPPT.Consider micro inverters for complex roofs
If you have two or more planes with regular partial shade, micro inverters give the most robust performance against mismatch. They also provide panel level monitoring for easier maintenance. support.enphase.comknowledge-center.solaredge.comThink about future add-ons
Micro inverters are modular. Adding a few panels later on a new roof plane is straightforward. If you plan a battery, both micro inverters and string systems can work, the battery design is chosen on the AC or DC side to suit your setup. See: https://solarpanelinstallers.co.uk/battery-storage/ and https://solarpanelinstallers.co.uk/is-battery-storage-worth-it-uk-2025/Roof types and mounting
Slate, tile and flat roofs each need the right mounting kit and weathering detail. If you have shade from parapets or plant on a flat roof, panel level control helps reduce row to row mismatch.
FAQ's
Are micro inverters always better than string inverters?
No. On a simple, unshaded south roof, a quality string inverter with correct sizing performs very well. Micro inverters shine where shade and mixed orientations introduce mismatch. MDPI
What about DC optimisers (power optimisers?)
DC optimisers add MPPT at the module, then feed a central inverter. They are another form of module level power electronics and can also mitigate mismatch. Choice often comes down to roof layout, monitoring preferences, warranty terms and your upgrade path. knowledge-center.solaredge.com
Do micro inverters help safety in the UK?
Micro inverters reduce DC cable runs because conversion to AC happens at the module. UK projects follow MCS MIS 3002 and relevant IET guidance, which set design and installation requirements. Your installer will specify safe isolation and cable routing either way. mcscertified.comIET Electrical Excellence
Will I see more energy on short winter days?
Panel level control cannot invent sunlight, but it prevents small shaded areas and mixed planes from limiting the whole array. That helps squeeze more out of short, low sun days. Aurora Solar
